Radon Mitigation Before & After Photos

Click on a photo to enlarge.

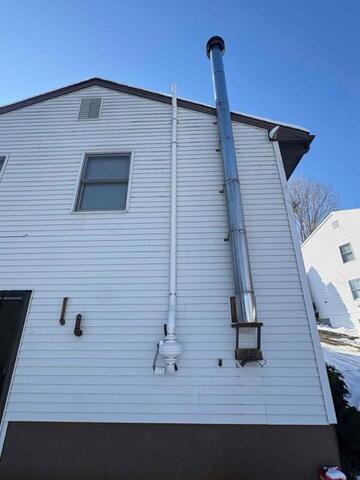

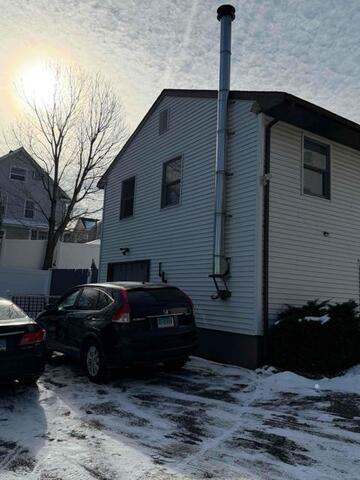

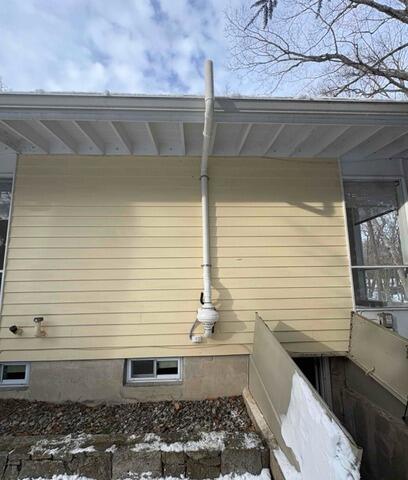

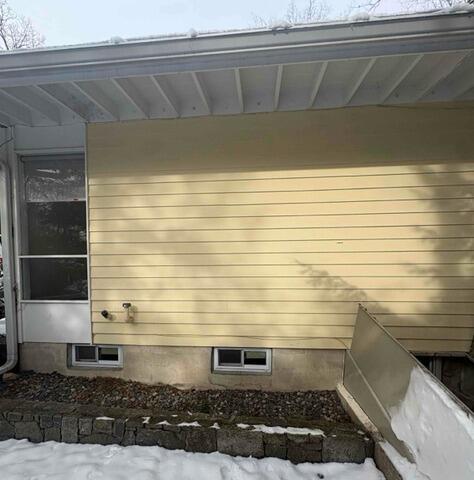

Premium Radon Mitigation System Installed in Greenwich, CT

Before: Concerned about radon levels in Greenwich, CT. After: Peace of mind with their newly installed premium radon mitigation system! Breathe easy knowing your home is safer and healthier. ?

Four-Point Radon Mitigation System and Crawl Space Encapsulation Planned for Old Greenwich Home

Two-Pipe Radon Mitigation System Planned for Stamford Home

Before

The home had a radon level of 4.3 pCi/L with no active mitigation system in place. The basement includes groundwater management and an inaccessible crawl space area.


After (Planned Work)



A two-pipe radon mitigation system is planned, with one extraction point in the basement foundation and a second horizontal run extending toward the crawl space.

One-Point Radon Mitigation System Planned for Stamford

Before

The home tested at 4.9 pCi/L, above the EPA action level of 4.0 pCi/L. Built in 1951, the approximately 1,200-square-foot home has no crawl space or sump pump. The basement is being prepared for occupancy, making radon mitigation an important step before the space is regularly used.

After

We plan to install a one-point radon mitigation system using an extraction point in the boiler room. The PVC pipe will exit the side of the home near the water faucet and run vertically up the exterior wall. Gravel will be used at the extraction point to support airflow beneath the foundation. Once installation is complete, follow-up radon testing will help confirm how effectively the system has reduced the indoor radon level.

Five-Point Radon Mitigation System Planned for Sherman Home

Before

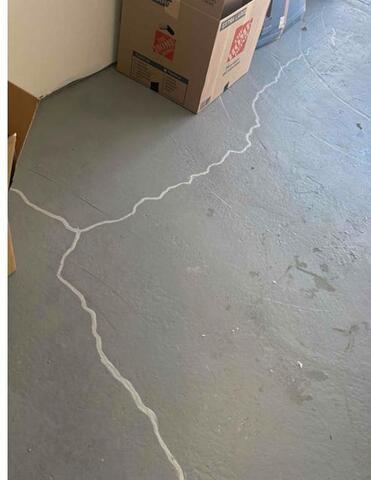

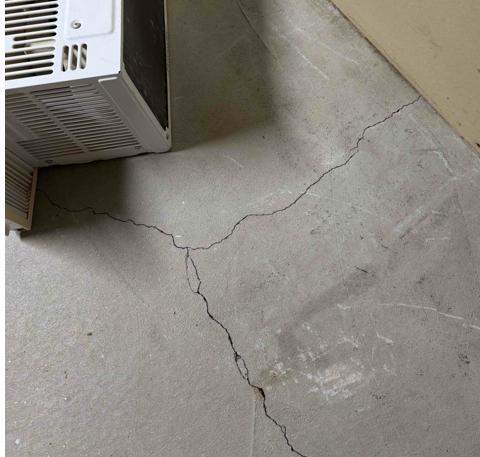

Built in 1890, this Sherman home has an old fieldstone foundation, a sand-based crawl space environment, and three separate dirt crawl spaces. Radon levels range from 3.0 to 5.0 pCi/L, with readings reaching the EPA’s recommended action level of 4.0 pCi/L. The foundation has multiple areas that need to be addressed, including openings that require concrete sealing. The three crawl spaces are planned for encapsulation by CT Basement Systems.

After (Planned Work)

A five-point radon mitigation system is planned, with three extraction points serving the crawl spaces and two serving the main foundation. A Festa Hawk fan will provide the suction needed to draw soil gases into the system and vent them outdoors. The plan also includes sealing identified openings in the concrete, while CT Basement Systems will handle crawl space encapsulation. Once the planned work is complete, follow-up radon testing can help evaluate the system’s performance.
