Radon Mitigation Before & After Photos
Click on a photo to enlarge.
Radon Mitigation System Planned for Derby Ranch Home - Unfinished Basement
Before:
The unfinished basement had no active radon mitigation system protecting the home.
After:
The unfinished basement now includes an active radon mitigation system for long-term radon reduction.
Two-Pipe Radon Mitigation System Installed with Sump Cover in Ansonia Home
Before
The home had elevated radon levels with no mitigation system in place and an exposed dirt opening in the basement allowing potential radon entry.
After
A two-pipe radon mitigation system was installed, and the dirt opening was sealed with a sump-style cover to reduce radon entry and improve system performance.
One-Point Radon Mitigation System Installed in Plymouth
Before

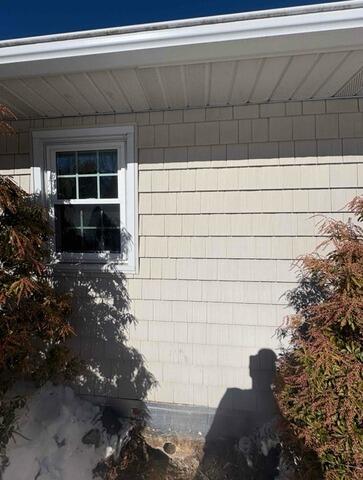

The home had no active radon mitigation system at the designated extraction point. The unfinished basement provided access for installing the piping and connecting the system to the gravel beneath the foundation.
After

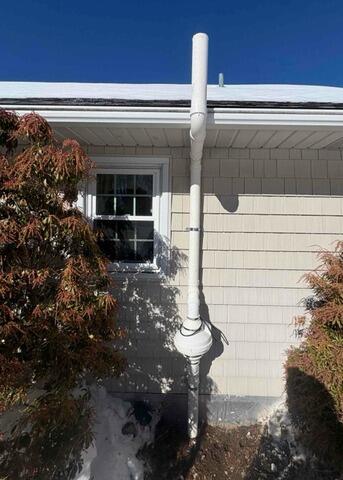

The one-point system was installed with a Festa Hawk fan mounted outside the home. Interior piping connects to the extraction point, while the exterior piping runs upward along the home’s siding. The system is now in place to help reduce indoor radon levels.
One-Point Radon Mitigation System Installation in Plymouth
Before
The basement tested at 10 pCi/L, higher than the EPA’s recommended action level of 4 pCi/L. The homeowners wanted to address the elevated reading so they could use the basement with greater confidence.
After
A one-point radon mitigation system was installed using a Festa Hawk fan. The system draws soil gas from beneath the foundation and vents it outdoors through piping routed along the left side of the home behind the chimney. A follow-up radon test is recommended to confirm the system’s performance.
Radon Mitigation System Noted in Naugatuck Home
Before
The home has a radon level of 4.3 pCi/L with an existing single-pipe mitigation system in place.
After (Next Step / Status)
No on-site work was performed. Further evaluation would be needed to assess system performance and determine if any adjustments are required.
