Radon Mitigation Photo Album: Radon Mitigation System Replacement Planned for Lakeside Home
This project focuses on relocating a noisy radon mitigation system away from the bedroom. The new system is planned for installation near the boiler, with piping routed above the Bilco doors and along the exterior of the home. Anti-vibration clamps and a muffler will be added to help reduce operating noise, and the old exterior pipe will be capped. The completed installation will provide a more suitable system location while continuing to address radon entry from the foundation.

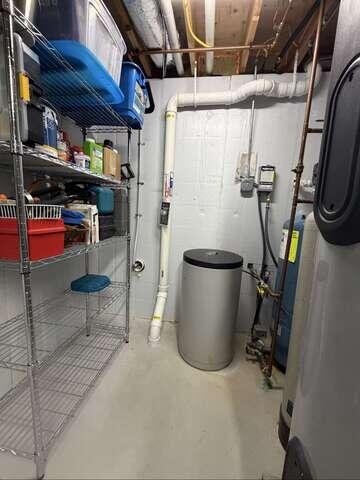

Existing Radon Piping - Basement
The existing radon piping runs through the basement near the mechanical equipment and boiler area.

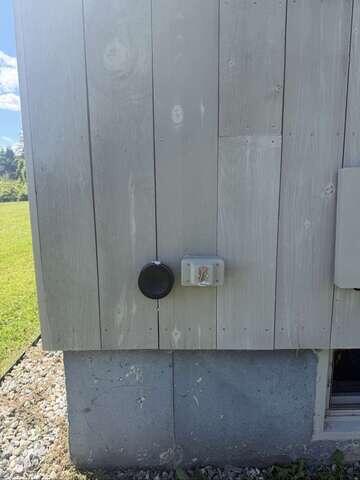

Exterior Wall - Location of Existing Radon Fan
Exterior wall area after existing radon fan was removed.

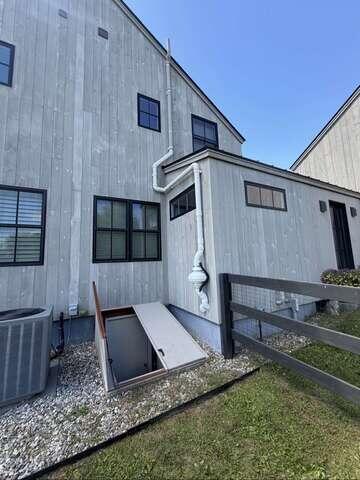

New Radon System Location - Exterior
The exterior area near the Bilco doors where the relocated system piping will be routed.

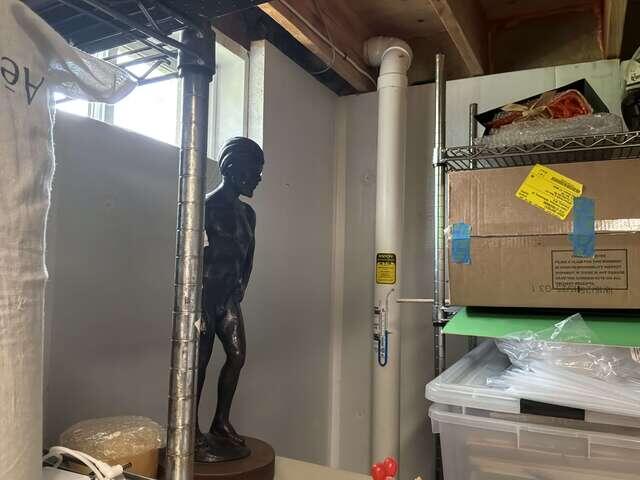

Existing Radon Piping - Interior
View of the existing radon piping inside the basement before the planned system relocation.

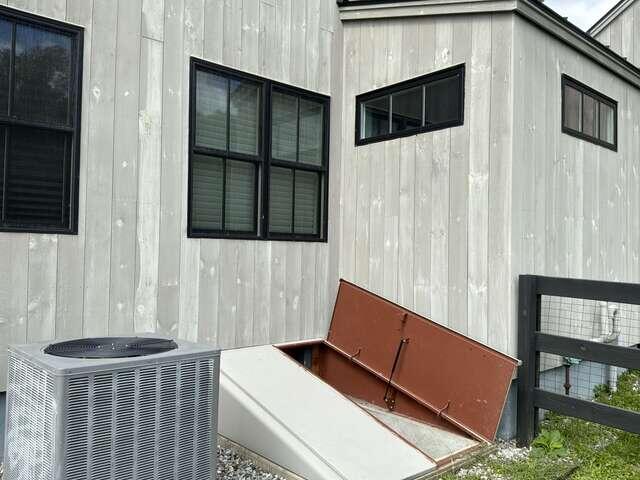

Bilco Door Area - Before
Exterior area near the Bilco doors where the new radon mitigation system is planned to be routed.

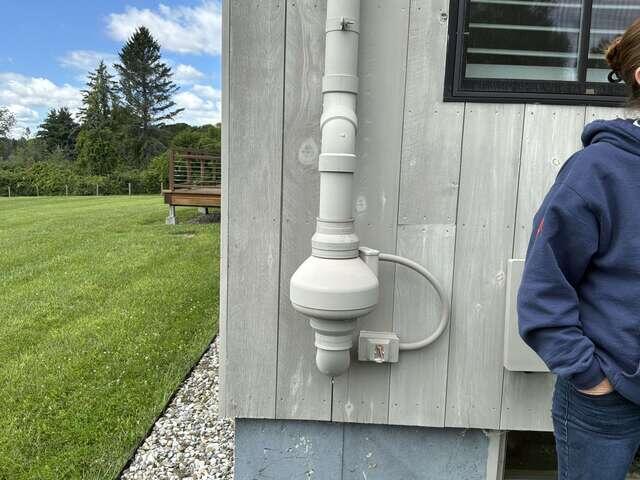

Existing Radon Fan - Before
The current exterior radon fan is located near the bedroom and is the source of the homeowner's noise concern.

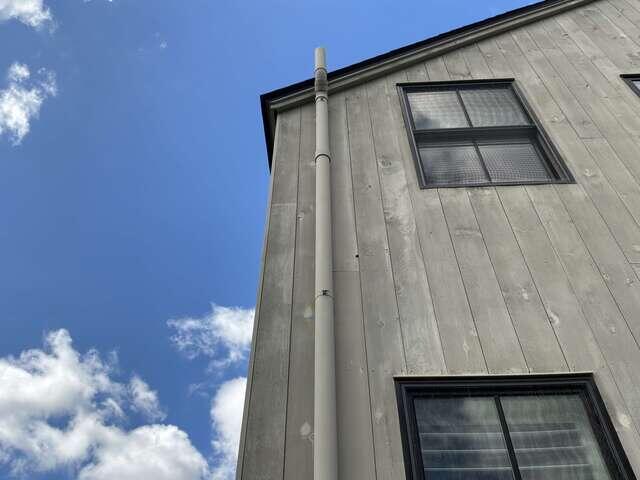

Exterior Vent Pipe - Upper Wall
The existing exterior vent piping extends upward along the home's siding toward the upper portion of the house.
