Radon Mitigation Photo Album: Radon Fan Installation and Insulated Attic Enclosure in Gaylordsville
These photos show the completed radon fan installation and insulated enclosure in the home's conditioned attic. The fan is contained within the insulated box, with the vent piping routed through the roof to discharge radon outdoors. Additional photos show the roof penetration and the home's existing radon piping and mechanical equipment.

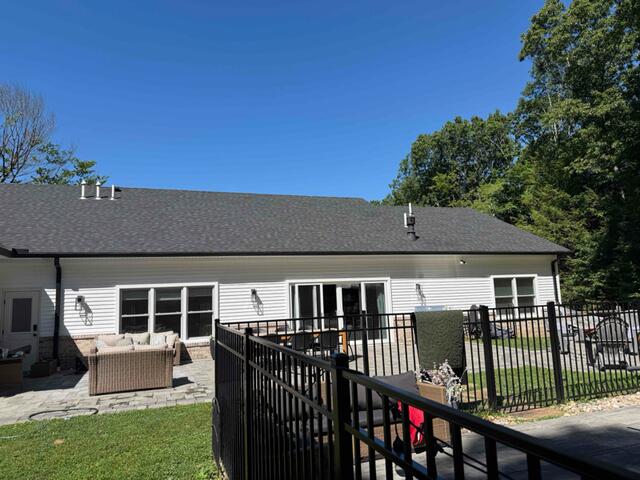

Exterior View - Backyard
View of the home's rear exterior and patio area, showing the completed roof vent as part of the radon system installation.

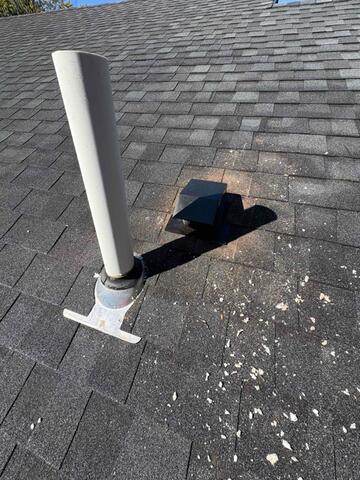

Radon Vent Through Roof
Close-up of the roof penetration where the radon vent piping extends above the roofline to discharge radon outdoors.

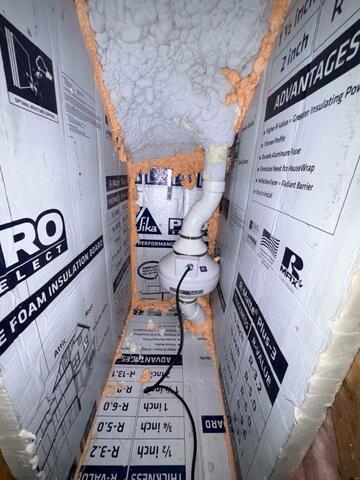

Insulated Radon Fan Enclosure
The radon fan is installed inside a custom insulated enclosure designed for the home's conditioned attic space.

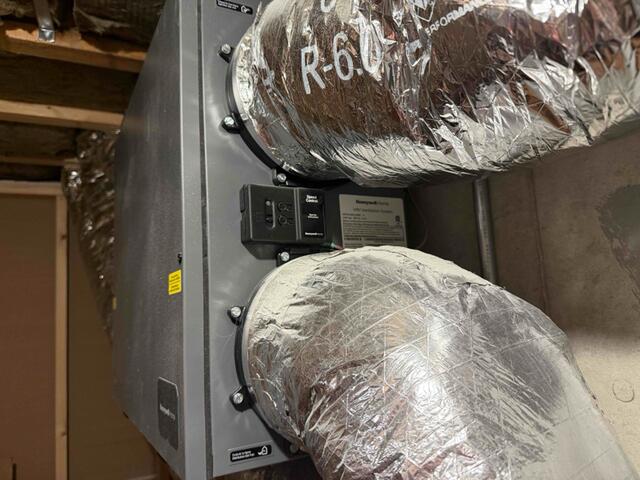

Attic Ventilation Equipment
View of the home's existing ventilation equipment and ductwork in the attic area.

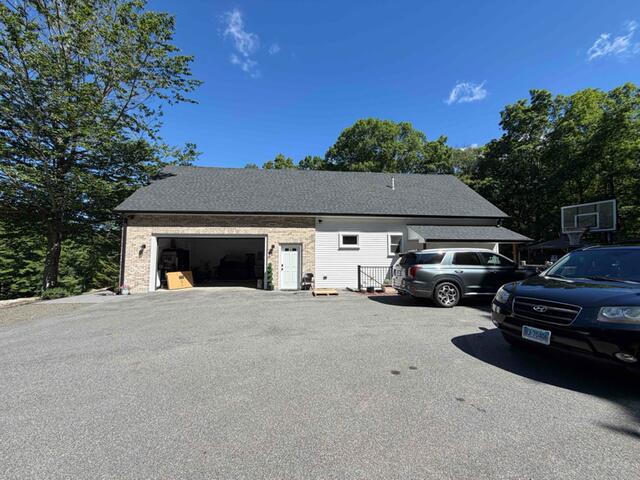

Exterior View - Front of Home
Wide view of the home before the completion of the radon fan enclosure and roof vent work.
