Radon Mitigation Photo Album: Radon Mitigation System Installation in Gaylordsville
The photos show the two extraction locations, including the piping installed in the crawl space and the main basement utility room. Exterior photos document the completed radon piping and fan installation along the home’s siding. Additional views show the basement work area and system components. Together, these images illustrate how the installation was routed to serve both foundation areas while working around the home’s existing layout.

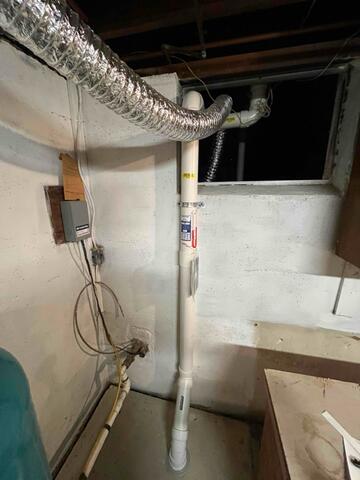

Main Basement Extraction Point
Radon extraction piping installed through the basement floor in the utility room.

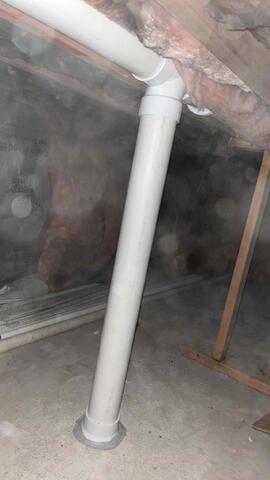

Crawl Space Extraction Point
Piping installed through the crawl space floor to draw radon from beneath this foundation area.

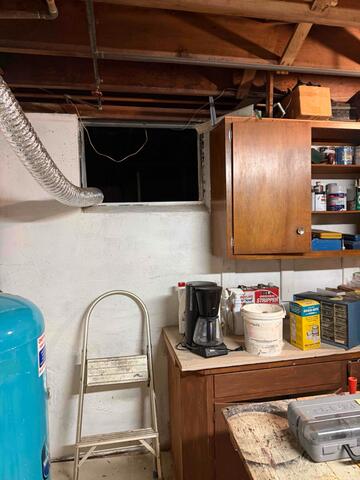

Basement Utility Room - Before and Work Area
The utility room and surrounding work area where the basement extraction point was installed.

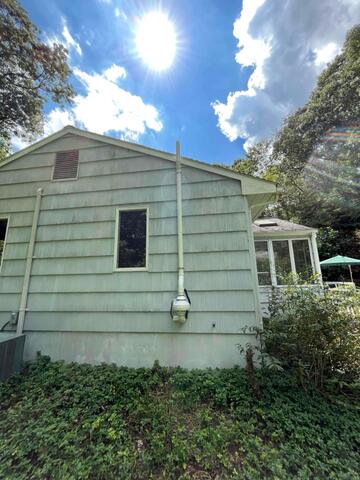

Exterior Radon Fan and Piping
The radon fan and exterior piping are installed along the home's siding to vent radon outdoors.

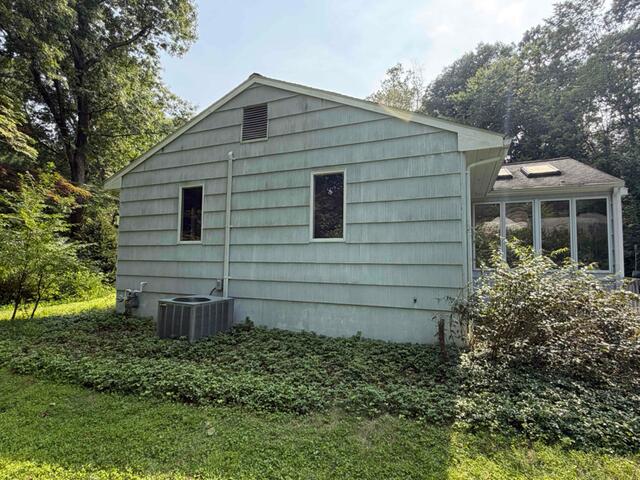

Exterior System Overview
A wider view of the home before the installation of the exterior radon piping.

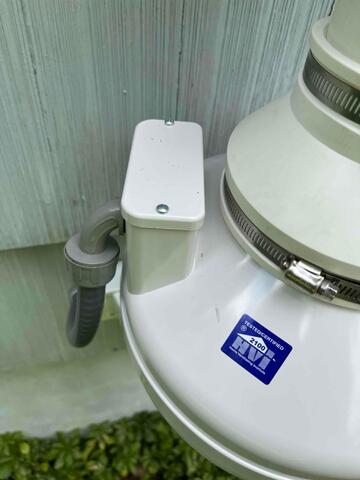

Radon Fan Component
Close-up of the installed radon fan housing and its connection to the system.

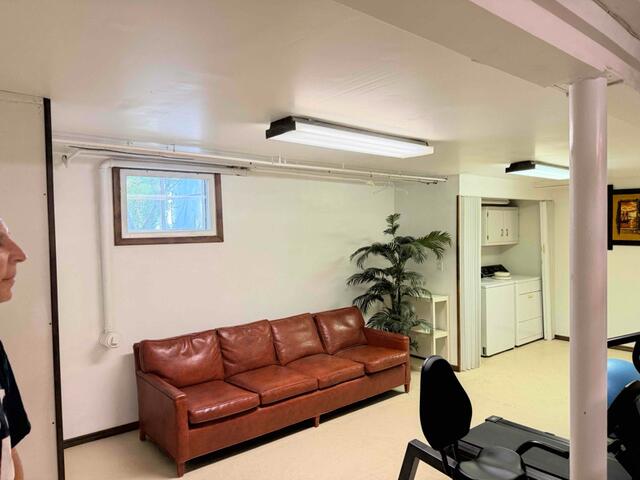

Finished Basement Area
View of the basement living area, showing the interior space near the radon system routing.
